- 產品介紹 -
DIST D-5236 HV 6公升

按照ASTM D 5236標準(Potstill)外加EXTENSION “HV”以供620° … 650°C AET高度真空操作的全電腦控制蒸餾系統

此產品在FISCHER® 科技品牌下將名為FISCHER® AUTODEST® 860 HV

i-Fischer® DIST D-5236 CC / FISCHER® AUTODEST® 860 AC 可通過在標準的ASTM系統(Potstill)上附加一個已伸展的Potstill蒸餾柱轉換成“HV”版本。個別的蒸餾過程則在0.005 … 0.1 mm Hg範圍內進行。

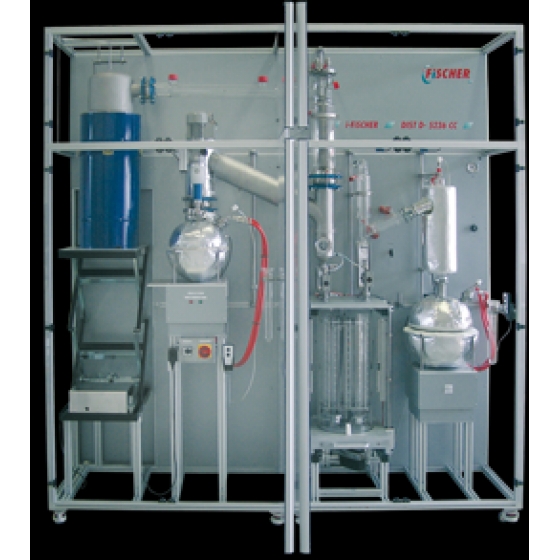

 i-Fischer® DIST D-5236 HV 6 公升/ FISCHER® AUTODEST® 860 HV 6 公升是一台全方位設計的全電腦控制系統,裝置並啟用後可立即使用。系統整體附外罩,並在前後方都設有門以滿足安全需求及方便進行維修。

擁有12個接受器的自動分餾收集器也設有一個內置的內部秤以同時確定分餾的重量以及直接控制蒸餾速度。系統上的真空設備及控制系統是為取得最高準確度以及資料的可重複性和可再現性而設計的。

i-Fischer® DIST D-5236 HV 6 公升 / FISCHER® AUTODEST® 860 HV 6公升也以50公升容量版本出售。

  Fully Computer Controlled Distillation System according to ASTM D5236 (Potstill) with

EXTENSION “HV” for High Vacuum Operation up to 620°…650°C AET

For our brand FISCHER® technology this product will be named FISCHER® AUTODEST® 860 HV

The i-Fischer® DIST D-5236 CC / FISCHER® AUTODEST® 860 AC can be converted to the “HV”-version by adding an extended Potstill-column to the standard ASTM-system (Potstill). The respective distillation process is performed in the range of 0.005…0.1 mm Hg.

The i-Fischer® DIST D-5236 HV 6 ltr / FISCHER® AUTODEST® 860 HV 6 ltr is a fully computer controlled unit of turn-key design, and ready for use after installation and commissioning. The system is fully housed and equipped with doors in the front and rear to satisfy safety requirements and to facilitate service aspects.

The automatic fraction collector with 12 receivers includes a built-in internal balance, which is used for the simultaneous determination of the fraction weight and for the direct distillation rate control. The vacuum equipment and the control system are designed for highest accuracy, repeatability and reproducibility of data.

The i-Fischer® DIST D-5236 HV 6 ltr / FISCHER® AUTODEST® 860 HV 6 ltr is also available with a capacity of 50 ltrs.
