MMS

小巧又特別多用途,對於極小數量擁有最高度分離效率的全自動系統

FISCHER® LABODEST® MMS是一台可按照特別要求而設計的元件式系統,其可設計的用途包括一架用於記錄蒸餾曲線圖或以印表機列印出蒸餾記錄,又或者作為電子資料處理的連接的設備。系統也以高溫設計和真空設計兩種版本出售。

 提供所有系統部件的工作臺式支撐架構、所有儀器的連接以及測量感應器

 帶用於20毫升瓶子的電子高度調控的精確油浴,附帶攪拌驅動器及綜合Pt-100測量感應器以供控制用途

隔熱及保護罩蓋

附以玻璃製造的手動蒸餾液分支控制伐以及球形地面接頭作為分餾收集器或蒸餾液接收器的備選連接的FISCHER® micro SPALTROHR®-column MMS 255

蒸餾瓶20毫升(0…10毫升裝樣量)

 溫度測量感應器 3x Pt-100

擁有8個接收器的分餾收集器,每個接收器容量15毫升

 樣本分支的針筒

蒸餾液接收器,2毫升,附冷卻套

附GL螺紋的接收器(12x),平底

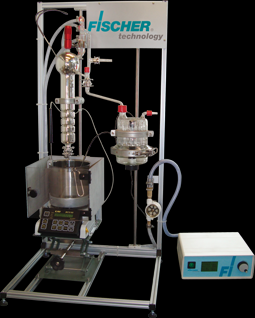

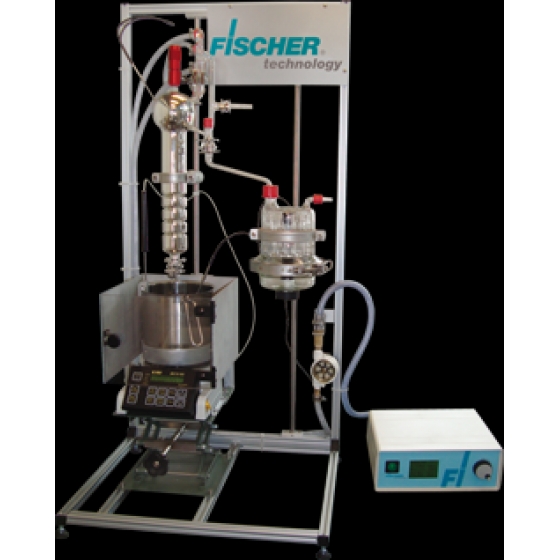

Compact and especially versatile, fully automated unit with highest separation efficiency for very small quantities

The FISCHER® LABODEST® MMS is modular system, which can be designed according to specific requirements including an equipment for recording the distillation curve or for printing-out the distillation record or for connection for electronic data processing. The system is also available in High Temperature Design and Vacuum Design.

  • bench-type supporting structure for all unit parts, connections for all devices and measuring sensors are provided
  • precision oil-bath with electric height adjustment for flasks of 20 ml, with stirrer drive and integrated Pt-100 measuring sensor for control
  • insulation and protection hood
  • FISCHER® micro SPALTROHR®-column MMS 255 with manual distillate take-off control valve made of glass, spherical ground joint for alternative connection of the fraction collector or of the distillate receiver
  • distillation flask 20 ml (0...10 ml charge quantity)
  • temperature measuring sensor, 3x Pt-100
  • fraction collector with 8 receivers, 1.5 ml each
  • syringe for sample take-off
  • distillate receiver, 2 ml, with cooling mantle
  • receivers with GL thread (12x), 1 ml, with flat bottom
