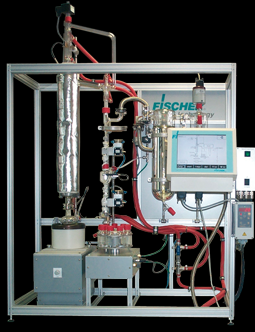

附FISCHER® SPALTROHR®蒸餾柱的自動半微型蒸餾系統
小巧又非常多用途的全自動化FISCHER® LABODEST® HMS 500 AC是一台擁有最高分離效率的系統。這是一台可按照特別要求而設計的元件式系統，可設計的用途包括一架用於記錄蒸餾曲線圖或以印表機列印出蒸餾記錄，又或者作為電子資料處理的連接的設備。
技術資料：
|
裝樣量 |
10...500 ml 毫升 |
|
操作穩定 |
分別高達200°C |
|
操作壓力 |
大氣或真空100...0.1毫巴 |
|
壓力下降 |
< 0.1毫巴 |
|
分離效率 |
高達90理論塔板 |
|
總電源 |
230伏特，50赫茲 |
|
尺寸（寬x 深 x 高） |
1.25 x 0.60 x 1.70 米 |
|
重量 |
大約100公斤 |

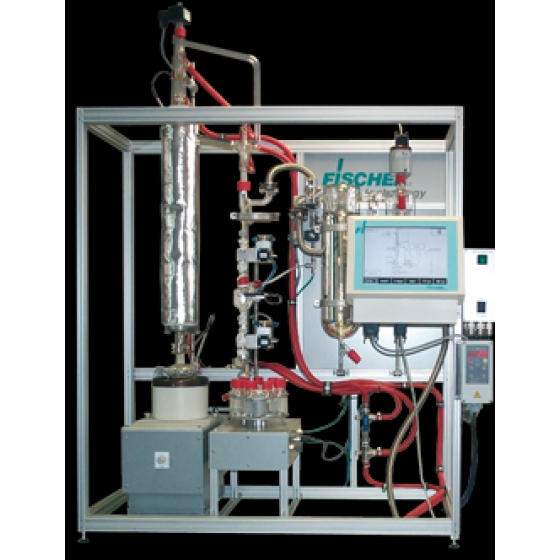

Automatic Semi-Micro-Distillation-Unit with the FISCHER® SPALTROHR®-Column
Compact and especially versatile, the fully automated FISCHER® LABODEST® HMS 500 AC is a unit with highest separation efficiency. A modular system, which can be designed according to specific requirements including an equipment for recording the distillation curve or for printing-out the distillation record by means of a printer or for connection for electronic data processing.
Technical Data:
| Charge Quantity | 10...500 ml |
| Operation Temperature | up to 200°C respectively up to 350°C |
| Operation Pressure | Atmospheric or Vacuum 100...0.1 mbar |
| Pressure Drop | < 0.1 mbar |
| Separation Efficiency | up to 90 theoretical plates |
| Mains Supply | 230 V, 50 Hz |
| Dimensions (w x d x h) | 1.25 x 0.60 x 1.70 m |
| Weight | approx. 100 kg |
