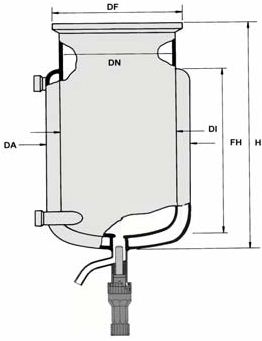

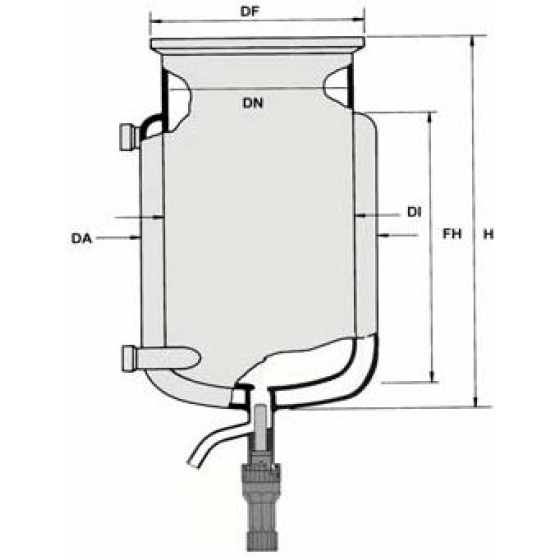

| Capacity | DN* | Height | Fillheight | DF | DA | DI | I | Pmax | Cat.No. |
| ml | mm | mm | mm | mm | mm | mm | mm | ||
| 4000 | 150 | 285 | 195 | 180 | 250 | 200 | 75 | 1,0 | 3161540 |
| 5000 | 150 | 315 | 230 | 180 | 250 | 200 | 75 | 1,0 | 3161550 |
| 6000 | 150 | 365 | 265 | 180 | 250 | 200 | 75 | 1,0 | 3161560 |
| 10000 | 150 | 345 | 250 | 180 | 300 | 270 | 75 | 0,5 | 3161591 |
| 15000 | 150 | 440 | 345 | 180 | 300 | 270 | 75 | 0,5 | 3161592 |
| 20000 | 150 | 535 | 440 | 180 | 300 | 270 | 75 | 0,5 | 3161593 |
| 10000 | 200 | 345 | 250 | 235 | 300 | 270 | 75 | 0,5 | 3162091 |
| 15000 | 200 | 440 | 345 | 235 | 300 | 270 | 75 | 0,5 | 3162092 |
| 20000 | 200 | 535 | 440 | 235 | 300 | 270 | 75 | 0,5 | 3162093 |
| 30000 | 200 | 735 | 630 | 235 | 300 | 270 | 75 | 0,1 | 3162095 |
