Fully Computer Controlled Distillation System according to ASTM D5236 (Potstill) with Extension “HV” for High Vacuum Operation up to 620...650°C AET

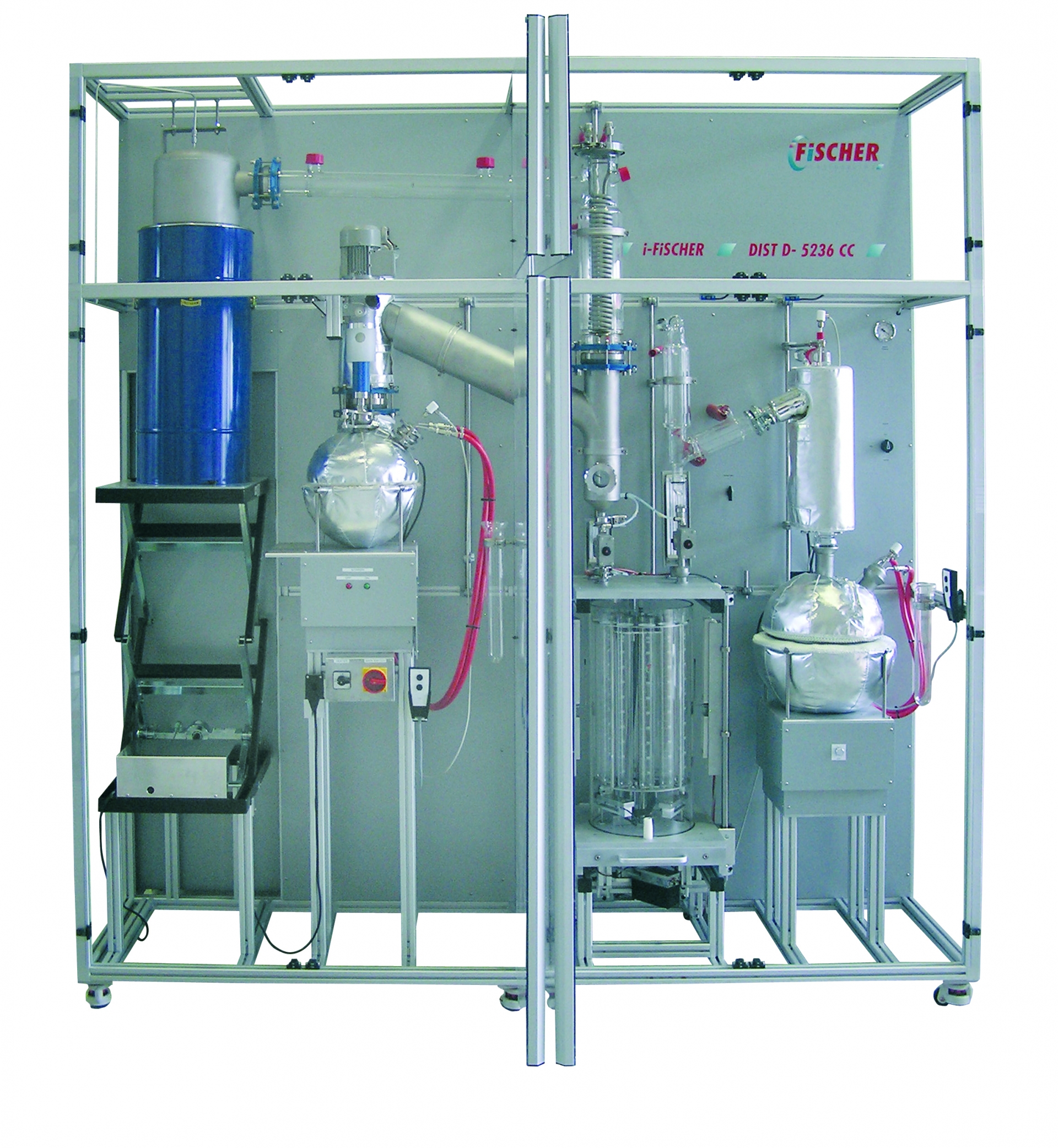

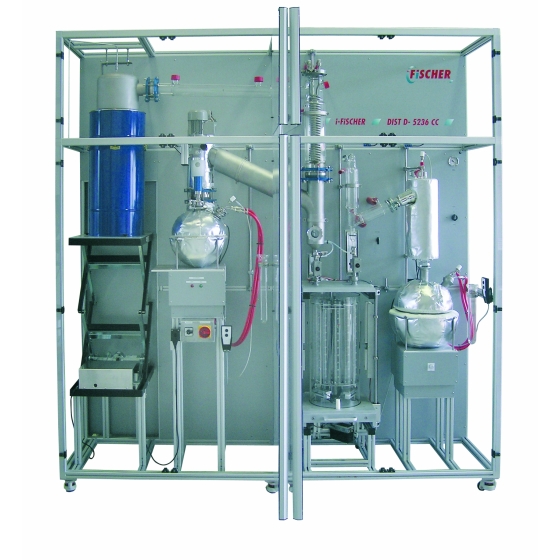

For our brand FISCHERR technology this product will be named FISCHERR AUTODESTR 860 HV. The i-FischerR DIST D-5236 CC / FISCHERR AUTODESTR 860 AC can be converted to the “HV” -version by adding an extended Potstill-column to the standard ASTM-system (Potstill). The respective distillation process is performed in the range of 0.005...0.1 mm Hg. The i-FischerR DIST D-5236 HV - 6 ltr / FISCHERR AUTODESTR 860 HV - 6 ltr is a fully computer controlled unit of turn-key design, and ready for use after installation and commissioning. The system is fully housed and equipped with doors in the front and rear to satisfy safety requirements and to facilitate service aspects. The automatic fraction collector with 12 receivers includes a built-in internal balance, which is used for the simultaneous determination of the fraction weight and for the direct distillation rate control. The vacuum equipment and the control system are designed for highest accuracy, repeatability and reproducibility of data. The i-FischerR DIST D-5236 HV - 6 ltr / FISCHERR AUTODESTR 860 HV - 6 ltr is also available with a capacity of up to 50 ltr.
