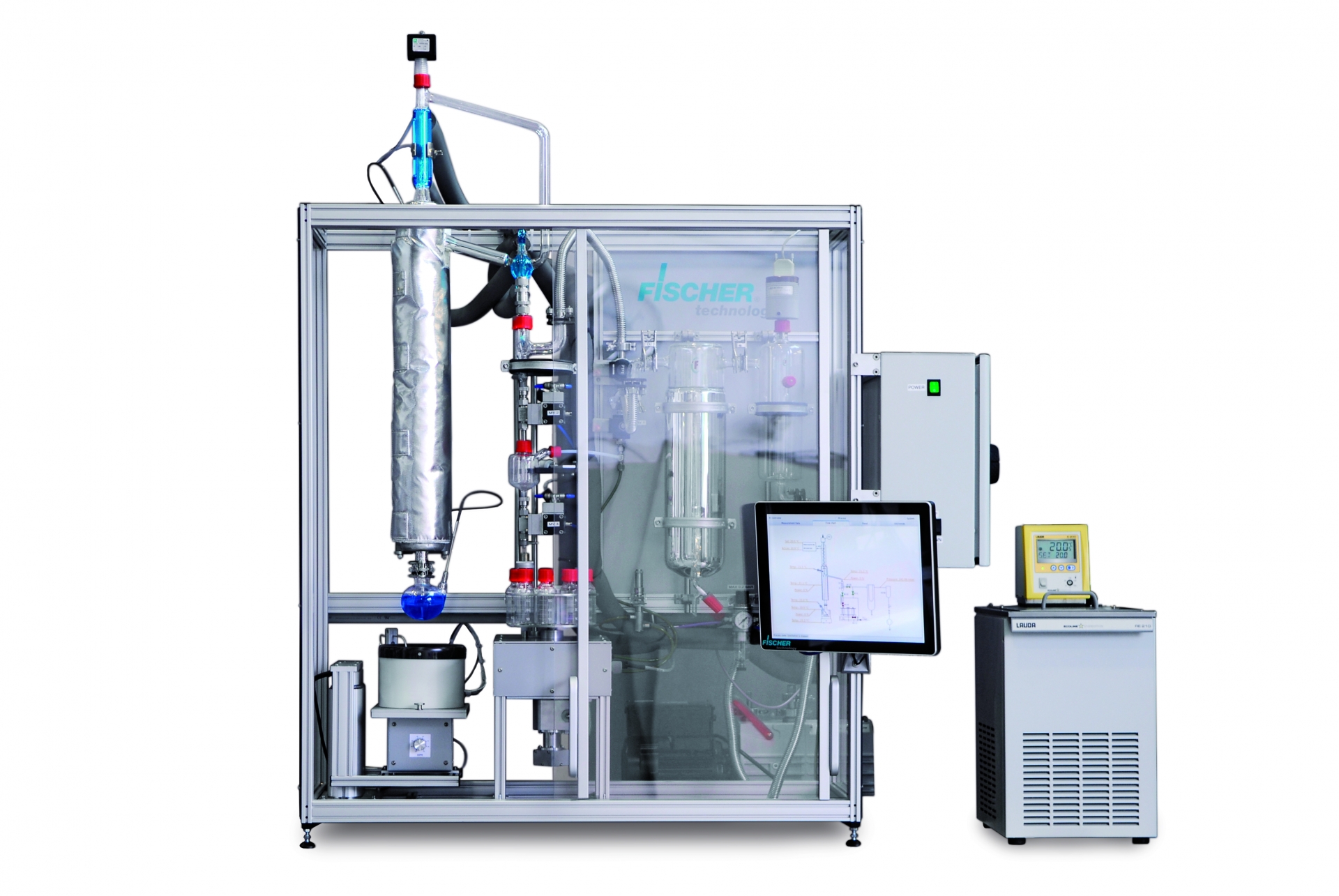

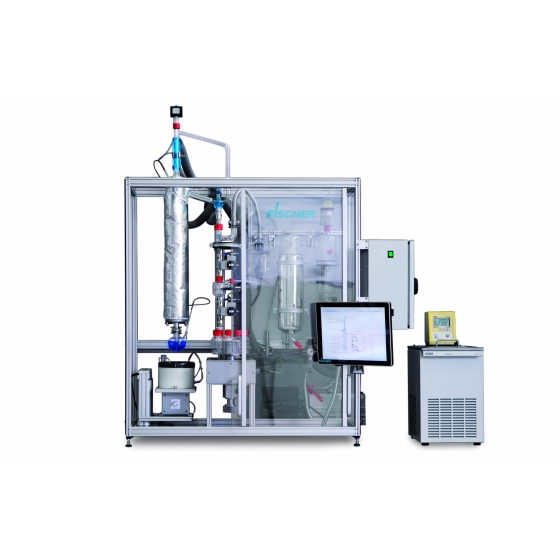

FISCHER® LABODEST® HMS 500 AC
Automatic Semi-Micro- Distillation-Unit with the FISCHER® SPALTROHR® -Column Compact and
especially versatile, the fully automated FISCHER® LABODEST® HMS 500 AC is a unit with highest
separation efficiency
A modular system, which can be designed according to specific requirements including an equipment
for recording the distillation curve or for printing-out the distillation record by means of a printer or for
connection for electronic data processing.
產品詳細介紹
Technical Data:
Charge Quantity 10...500 ml
Operation Temperature up to 200°C, with optional extension: up to 350°C
Operation Pressure Atmospheric or Vacuum 10 0...0.1 mbar
Pressure Drop < 0.1 mbar
Separation Efficiency up to 90 theoretical plates
Mains Supply 230 V, 50 Hz Dimensions (w x d x h) 1.25 x 0.60 x 1.70 m
Weight approx. 100 kg
