ILUDEST®‘s answer to medium level requirements on automated distillation controls ...
Unit with colour graphical 15”-Touch-Panel (capacitive) providing the functions as below:
Heating control either through constant power or constant temperature Reflux range (0) 1...500 s / (0)
1...500 s
Temperature- or time-controlled distribution of fractions by optional fraction valve
Vacuum control
Control of mantle heater

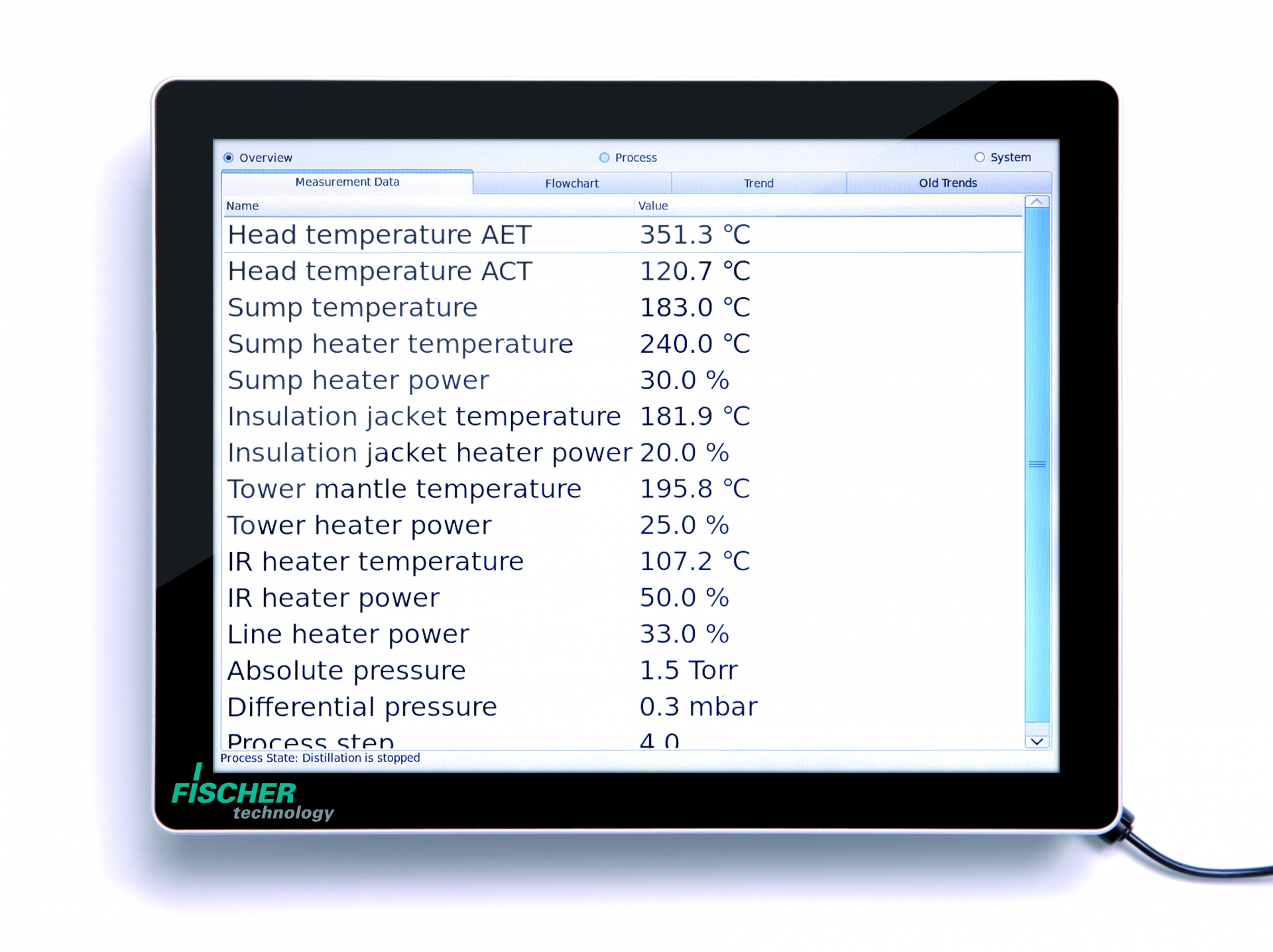

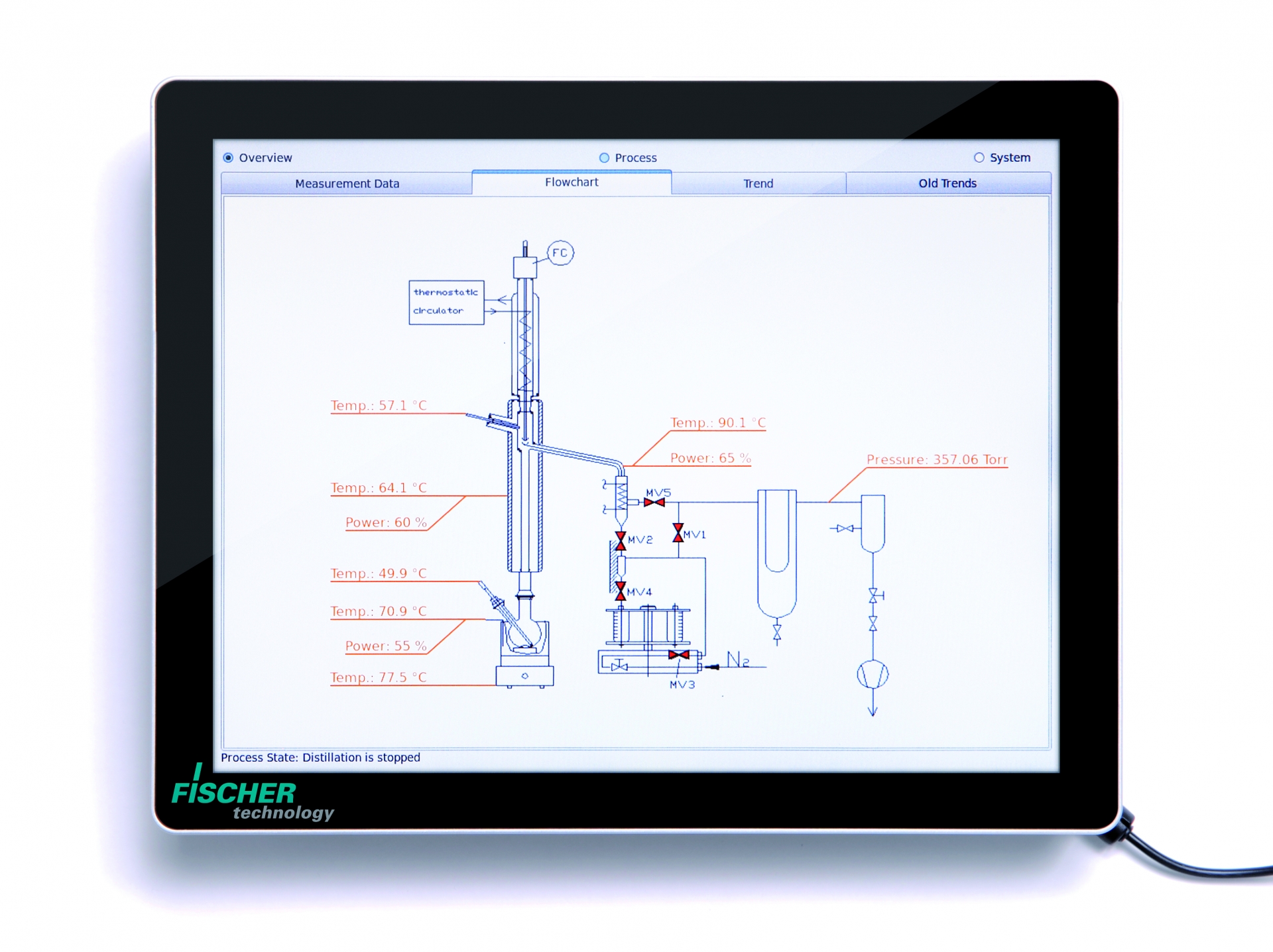

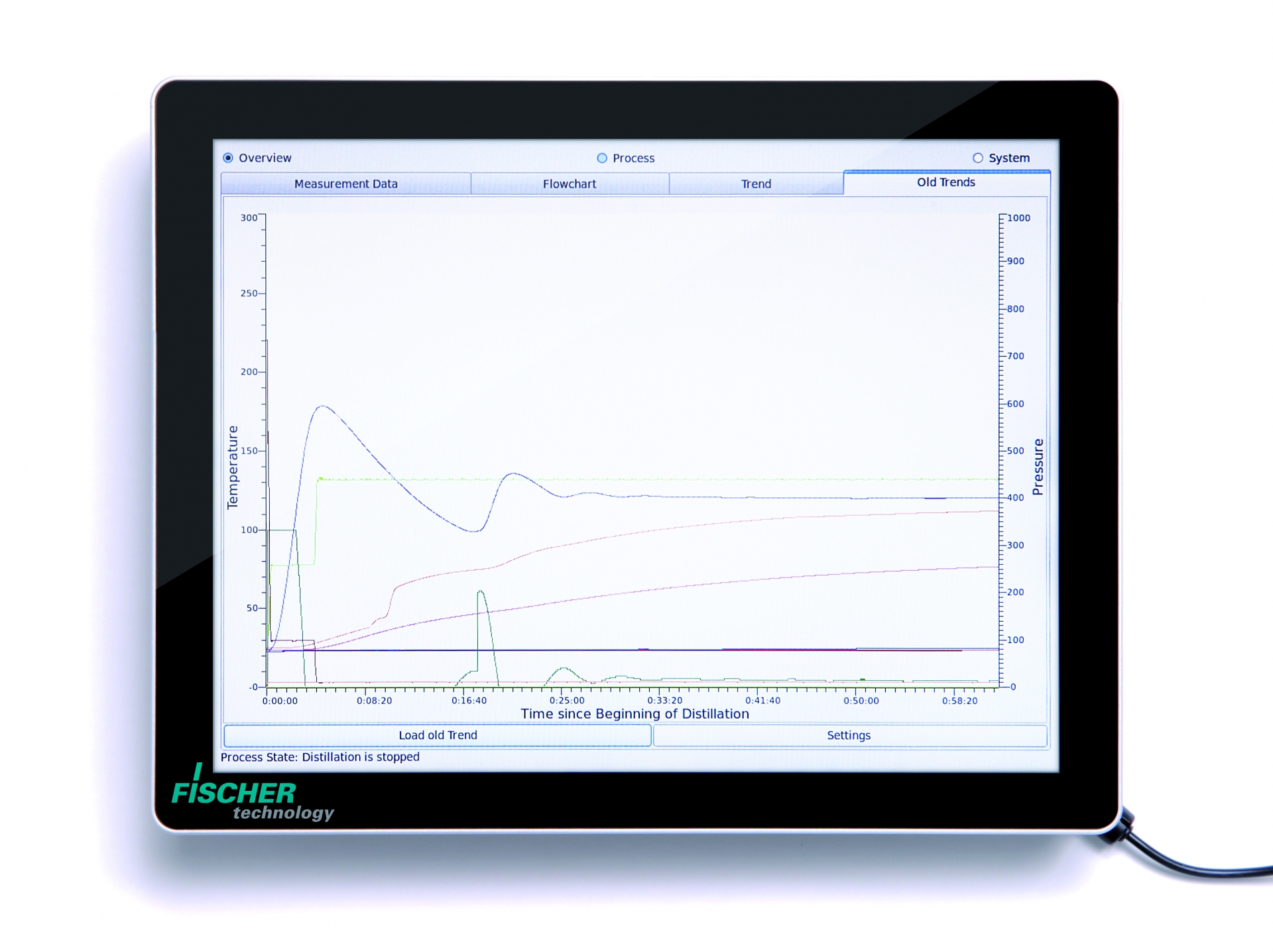

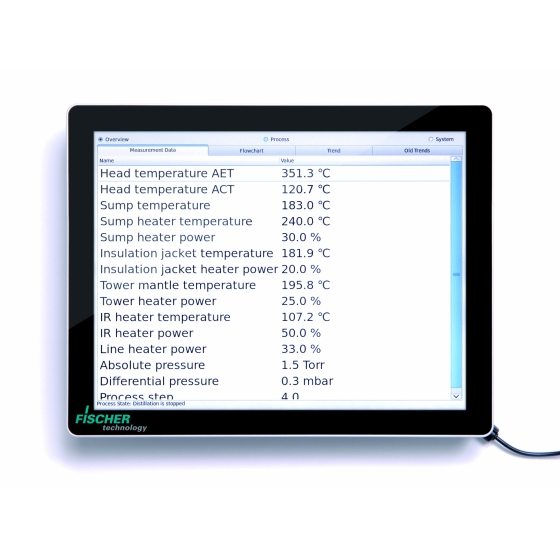

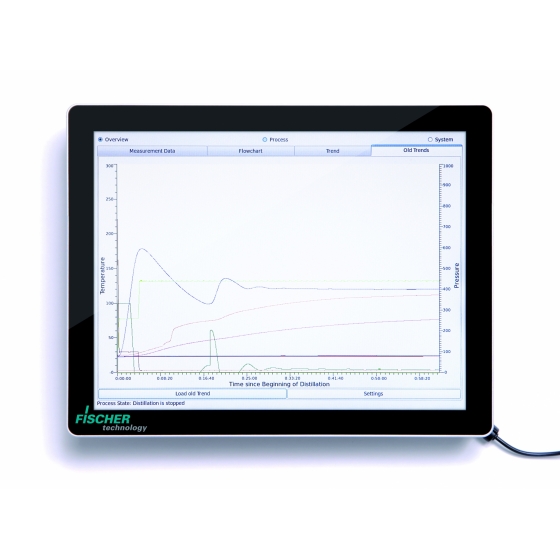

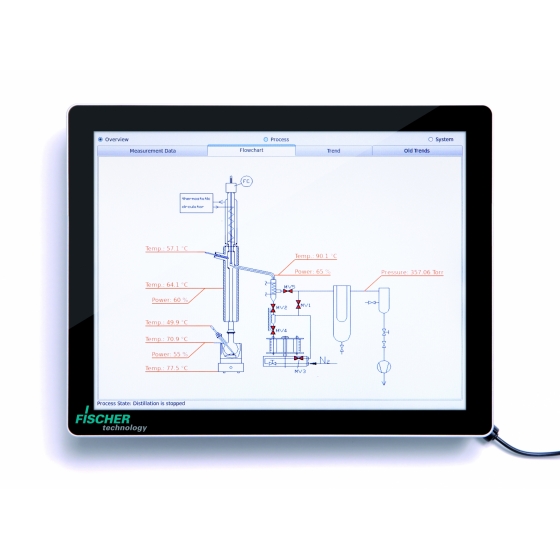

Numerical and graphical display of all measurement data
Control of safety limits (temperature and differential pressure)
Coolant flow control
Automatic Process
Start-up process at increased heating power
Equilibrium-time under total reflux
Fractionation at individual reflux ratio
Termination of distillation process through maximum temperature
Minimum level in the evaporator or time-controlled

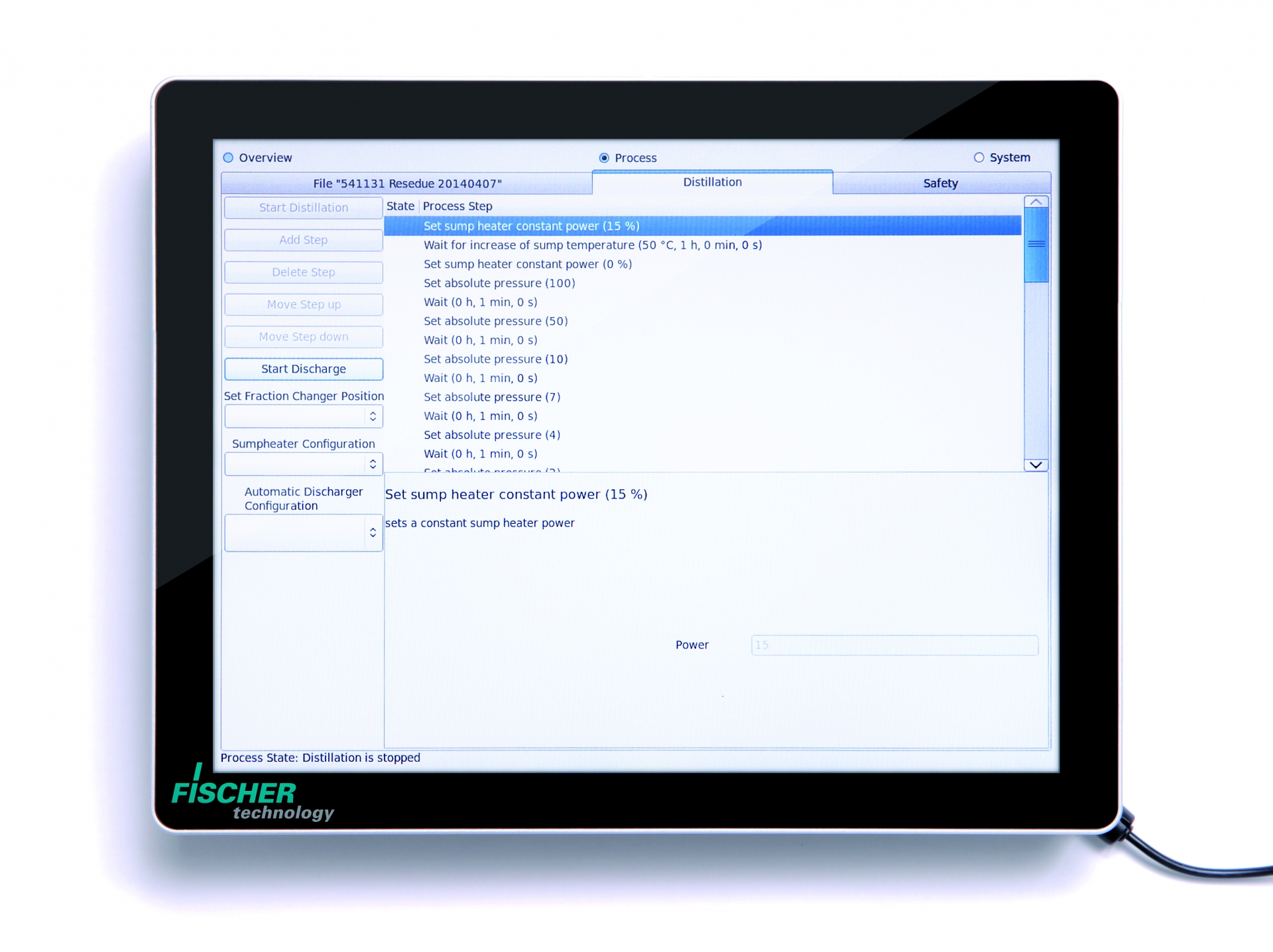

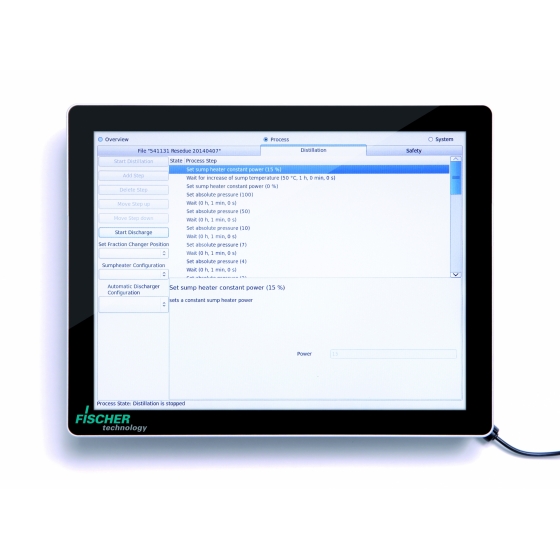

The controller includes a recipe management
An optional software allows to control the system by a remote PC via Ethernet
