- 產品介紹 -
Kiloclave-inert
反應器容積: 1.0-20.0 升
工作壓力:-1 ~ + 6 / 60 bar
工作溫度:-20 ° C` + 180 / 250 ° C
材料: 6 bar版本: 玻璃,搪玻璃、 陶瓷、 PFA、 PEEK、PTFE
材料: 60 bar版本: 搪玻璃、 陶瓷、 PFA、 PEEK、PTFE、 鉭

該多用途壓力反應釜系統可以高抵抗酸,避免任何類型的金屬部件對化學品的污染或干擾。它有陶瓷磁力耦合攪拌馬達的搪玻璃壓力釜體和增強聚四氟乙烯釜蓋或用於高壓的鉭金屬釜蓋。

釜體液壓提升與傾斜功能使打開和閉合的釜體清洗變的很容易。其安全功能保障壓力下的反應安全。

高扭矩磁力馬達可確保由低到高粘度過程介質的高效混合和攪拌的,以及有卓越的熱傳導性能。

Kiloclave 系統的模組設置允許你在任何時候進行功能變更或升級新的使用功能。種類繁多的配件用於液體 / 固體/氣體加料,快速開合裝置,和催化劑籃等。和我們溝通來確認您的特殊需要的正確配置。

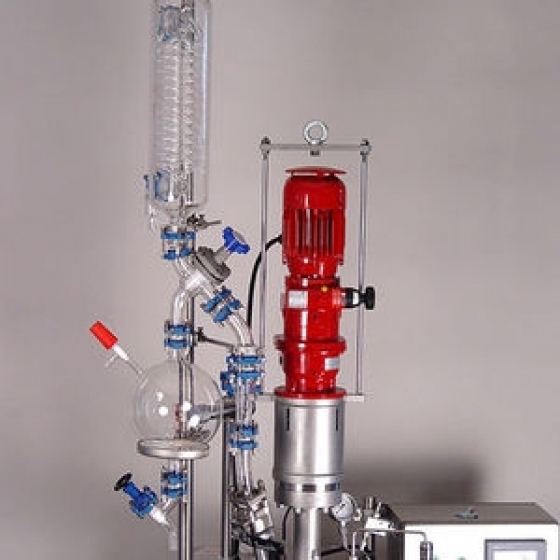

緊湊反應釜系統 versoclave-和 polyclave 惰性,polyclave 惰性最大到 5 升,可以使用玻璃反應釜,詳見全金屬版本

Reactor volume: 1.0 - 20.0 liter
Pressure: -1 (FV) to +6 / 60 bar
Temperature: -20 °C to +180 / 250 °C
Material: 6 bar version: Glass, Glass lined steel, ceramic, PFA, PEEK, PTFE
Material: 60 bar version: Glass lined steel, ceramic, PFA, PTFE, Tantalum

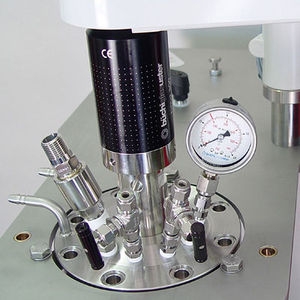

This multipurpose pressure reactor system ensures high resistance against acids, avoiding contamination or interference of any type of metal components with the chemicals. It is designed for the use of glass lined steel pressure vessels with ceramic magnetic stirrer coupling and reinforced PTFE cover or with Tantalum cover for higher pressure.

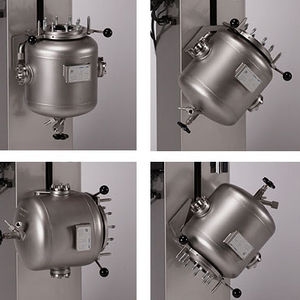

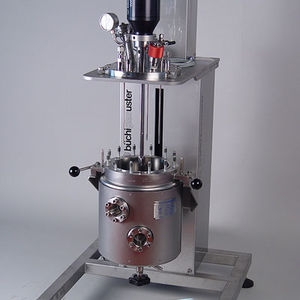

The hydraulic vessel lift with tilt function makes opening and closing as well as cleaning of the vessel very easy. Safety features guarantee safe reactions under pressure.

High torque magnetic drive ensures efficient mixing and stirring of low to high viscosity process media as well as excellent heat transfer.

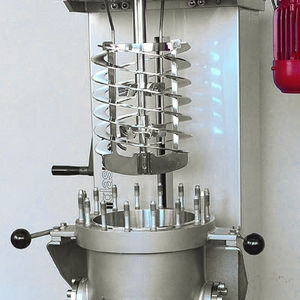

The modular setup of the kiloclave system allows changing or upgrading for new tasks at any time. A wide range of accessories for feeding of liquids / solids / gas, a fast action closure device, and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
