反應器容積： 0.5-20.0 升
工作壓力：-1 （FV）~ + 60 / 200 bar
工作溫度：-20 ° C ~ + 250 ° C
材料： 不銹鋼、 哈氏合金、 搪玻璃
該多用途壓力反應釜系統可適用大型不銹鋼壓力釜體。釜體液壓提升與傾斜功能使打開和閉合的釜體清洗變的很容易。其安全功能保障壓力下的反應安全。
不銹鋼或高抗酸性的哈氏合金反應釜體。不銹鋼壓力容器安裝視窗玻璃可實現高壓下的視覺程序控制和監測。可配備各種由低到高扭矩的磁驅耦合驅動馬達,確保從低到高粘度的介質都能高效的混合和攪拌以及有優秀的熱傳導性能。
Kiloclave 系統的模組設置允許你在任何時候進行功能變更或升級新的使用功能。
種類繁多的配件用於液體 / 固體/氣體加料,快速開合裝置,和催化劑等。和我們溝通來確認您的特殊需要的正確配置。
Reactor volume: 0.5 - 20.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: -20 °C to +250 °C
Material: stainless steel, Hastelloy, Glass lined steel

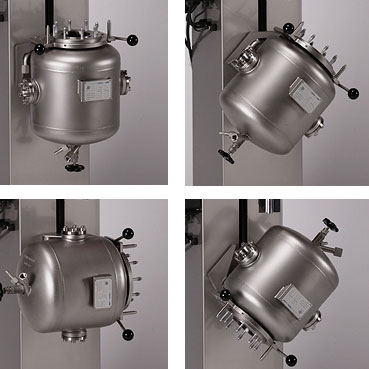

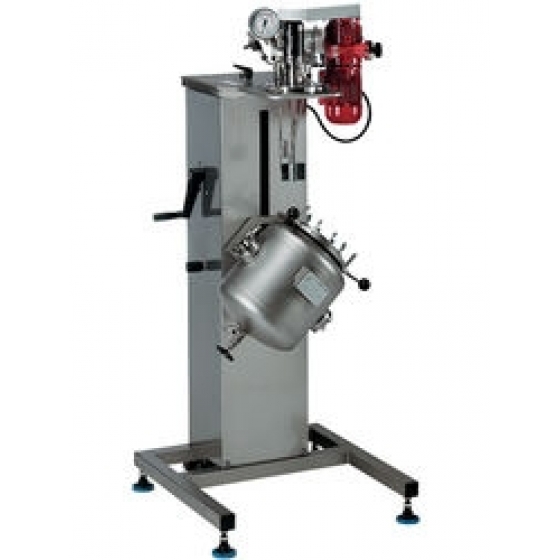

This multipurpose pressure reactor system is designed for the use of large steel pressure vessels. The hydraulic vessel lift with tilt function makes opening and closing as well as cleaning of the vessel very easy. Safety features guarantee safe reactions under pressure.

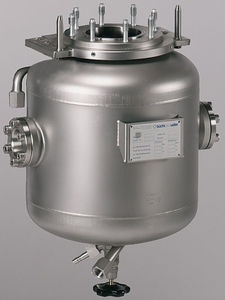

The stainless steel or Hastelloy reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.
The modular setup of the kiloclave system allows changing or upgrading for new tasks at any time.
A wide range of accessories for feeding of liquids / solids / gas, a fast action closure device, and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
