體積: 0.5-5.0升
壓力:-1 (FV) to +60 / 200 bar
溫度: 250°C
材料: 不銹鋼，哈氏合金
該多功能壓力反應釜可更換不銹鋼耐壓釜體。安全特性保證許可壓力下的反應安全。
不銹鋼或哈氏合金反應釜有很強的耐酸性。也可以使用帶視窗的不銹鋼釜體在高壓反應中觀察並監控反應。各種從低到高的磁力驅動確保有效混合和攪拌反應介質以及優異的換熱效果。
反應釜的模組化構造能隨時改變或增加新任務。
多種多樣的配件， 快拆級升降裝置 ，液體/固體/氣體進料器，催化劑等）可以選擇–請就您的特殊需求諮詢我們。
Reactor volume: 0.5 - 5.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: -20°C to +250 °C
Material: stainless steel, Hastelloy

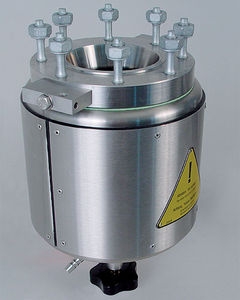

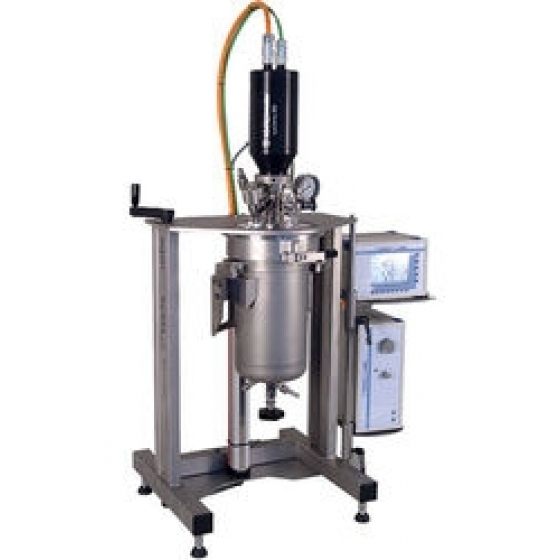

This multipurpose pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.
The stainless steel or Hastelloy reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.
The modular setup of the versoclave system allows changing or upgrading for new tasks at any time.
With fast action closure and Reactor lift it becomes very easy to operate also heavy metal pressure vessels. A wide range of accessories for feeding of liquids / solids / gas and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
