- 產品介紹 -

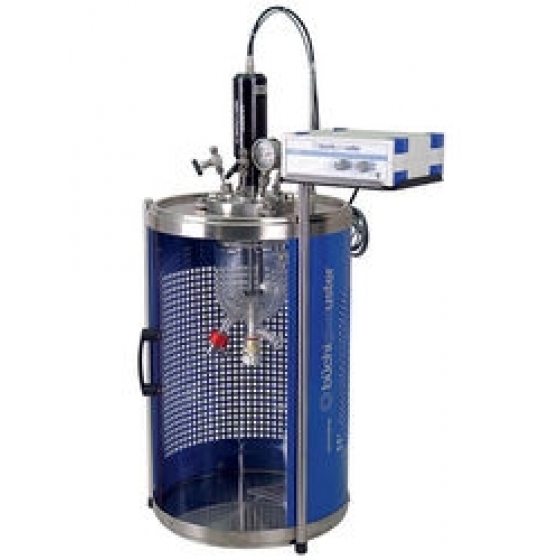

Ecoclave

釜體容積: 0.25 - 5.0 liter
壓力-1 (FV) to +60 / 200 bar
溫度: - 20 °C to +250 °C
材質硼矽玻璃 3.3,不銹鋼, 哈氏合金

  • 其它材質壓力 & 溫度可選

這種多用途壓力反應釜系統設計為可更換玻璃或壓力釜體.保證壓力下的反應安全

玻璃釜體確保高耐酸性,同時允許反應過程可視及監測.在高壓下這些功能也可以通過用鋼釜體加玻璃視窗來實現.各種從低到高扭矩的磁力傳動保證了黏度從低到高的操作過程攪拌效果出色同時有極好的傳熱.

ecoclave系統的模組的設置允許為新任務隨時改變或升級

範圍廣闊的液體/固體/氣體加料附件,以及其它的例如催化劑等等.
都是可選的-應您的需要和我們交流以做出正確選擇



Reactor volume: 0.25 - 5.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: - 20 °C to +250 °C
Material: Borosilicate glass 3.3, stainless steel, Hastelloy

  • Other materials, pressures & temperatures are available.

This multipurpose pressure reactor system is designed for the use of interchangeable glass - and steel pressure vessels. Safety features guarantee safe reactions under pressure.

The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring. This is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.

The modular setup of the ecoclave system allows changing or upgrading for new tasks at any time.

A wide range of accessories for feeding of liquids / solids / gas, and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
