- 產品介紹 -

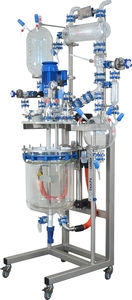

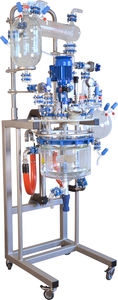

Midipilot

玻璃反應釜: 20、30 liter

工作壓力: -1 (FV) ~+1.0 bar
工作溫度:-60 ° C (-90 ° C) ~ + 200 ° C
材料: 硼矽酸鹽玻璃 3.3,PTFE,PFA,PEEK

  • 其他設置可定制。

在midiPilot 產品系列中 (反應器,Nutsch 篩檢程式、 氣體洗滌器) 我們提供化工制程開發的小型試驗設備用於放大、 制程類比和公斤規模化生產。

反應器的防爆設計 (ATEX) 和惰性材料可以在完全密封的反應容器中安全地處理溶劑和酸。 緊湊的標準反應釜設置可以簡易地更改配置,20 和 30 升的釜體可互換,攪拌葉片也可互換。反應釜安裝於升/降裝置,易於打開和清洗。蒸餾的玻璃上部是使用flexible ball-socket joints 在全真空下作多種化學反應。

我們提供化學制程的完整解決方案: 反應器系統含配件  如取樣裝置及、 ph 值探頭、 精餾柱含結構填料、制程監測及控制以及整合輔助設備,如附屬設備溫度控制單元nutsch 過濾/乾燥器, 洗滌器 或 混合槽.

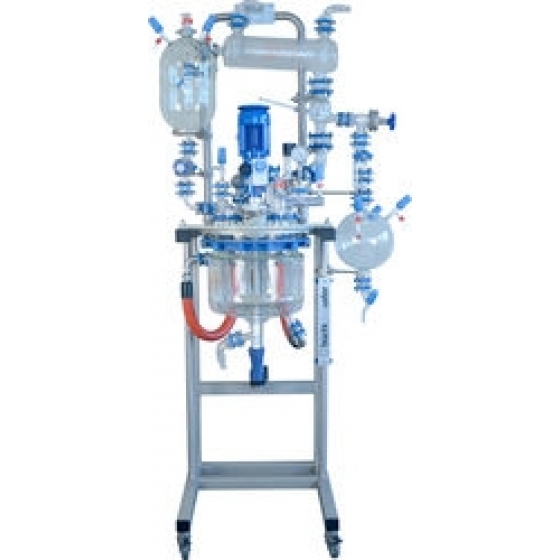

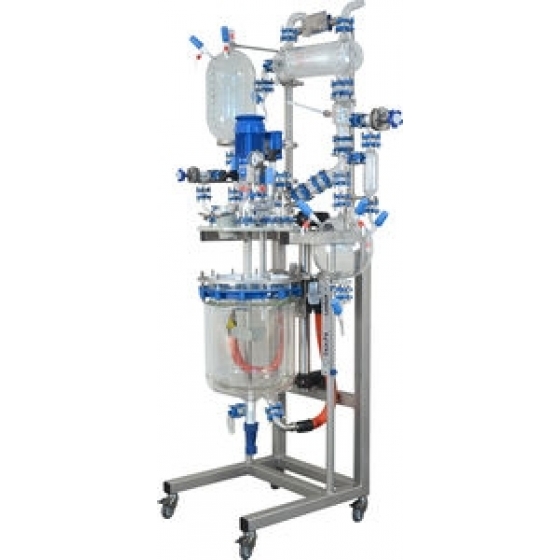

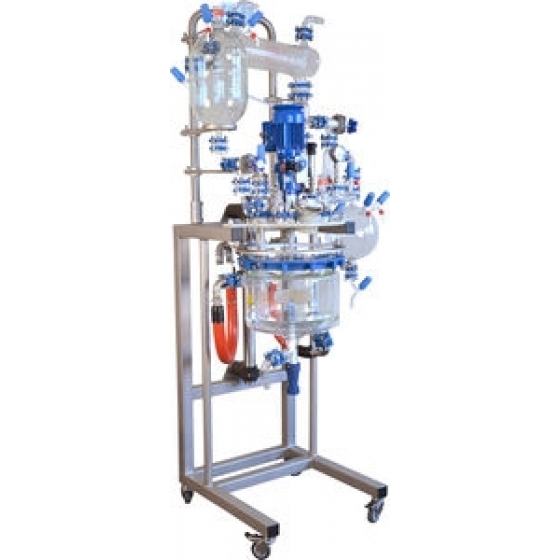

Glass reactor: 20, 30 liter
Pressure: -1.0 (FV) to +1.0 bar
Temperature: -60 °C (-90 °C) to +200 °C
Material: Borosilicate glass 3.3, PTFE, PFA, PEEK

  • Other setups are available.

With the midiPilot product family (Reactor, nutsch filter, scrubber) we offer mini-plants for chemical process development, scale up, process simulation and kilo-scale production.

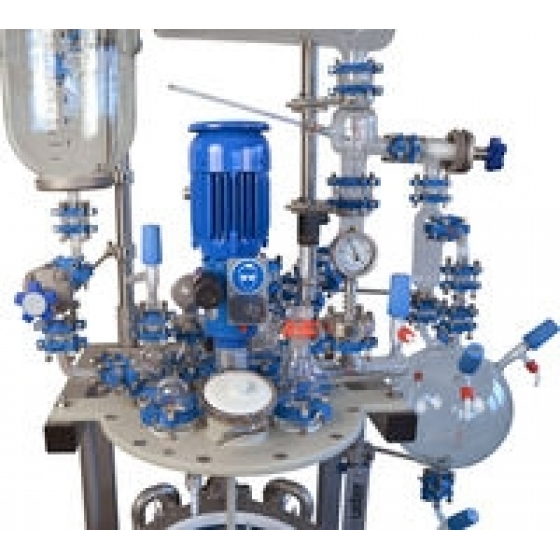

The Reactor's explosion proof design (ATEX) and inert materials allow safe processing of solvents and acids in a completely sealed reaction vessel. The compact standard reactor setup can easily be modified, interchangeable reaction vessels of 20 and 30 liters including interchangeable stirrers are available. The reaction vessel is installed on a lifting / lowering device, for easy opening and cleaning. The distillation glass overhead is built with flexible ball-socket joints for multiple chemical reactions under full vacuum.

We produce complete solutions for chemical processing: Reactor systems including accessories like sampling devices, pH probes, rectification columns with structured packing, process monitoring and control as well as integration of auxiliary equipment such as temperature control unitsnutsch filters / dryersscrubbers or mixing vessels.
