玻璃反應釜： 5、 10、 15 liter
工作壓力： -1 (FV) ~+1.0 bar
工作溫度：-60 ° C (-90 ° C) ~ + 200 ° C
材料： 硼矽酸鹽玻璃 3.3，PTFE，PFA，PEEK
在miniPilot 產品系列中 （反應器，nutsch 篩檢程式、 氣體洗滌器） 我們提供化工過程開發的小型試驗設備用於放大、 過程類比和公斤規模化生產。
反應堆的防爆設計 (ATEX) 和惰性材料在完全密封的反應容器中可以安全處理溶劑和酸。緊湊的標準反應釜安裝程式可以方便地更改配置，有可互換的反應釜體5、 10 和 15 liter，包括可互換的攪拌器。反應釜安裝有提升/降低裝置，易於打開和清洗。蒸餾塔的玻璃關節是使用靈活的接頭可在化學反應時實現完全真空條件。
我們提供化學加工完整解決方案： 反應器系統包括像取樣裝置及配件、 ph 值探頭、 精餾柱及標準填料、 過程監測和控制以及輔助設備，如溫度控制單元，nutsch過濾/乾燥器、 洗滌器或混合槽。

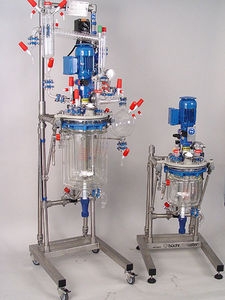

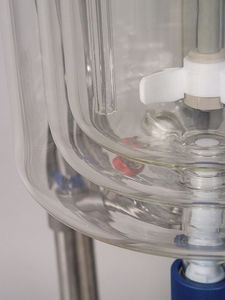

Glass reactor: 5, 10, 15 liter
Pressure: -1.0 (FV) to +1.0 bar
Temperature: -60 °C (-90 °C) to +200 °C
Material: Borosilicate glass 3.3, PTFE, PFA, PEEK

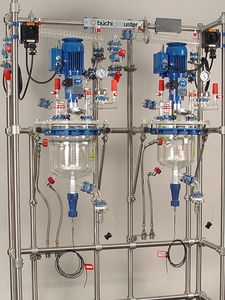

With the miniPilot product family (Reactor, nutsch filter, scrubber) we offer mini-plants for chemical process development, scale up, process simulation and kilo-scale production.

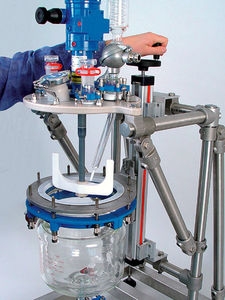

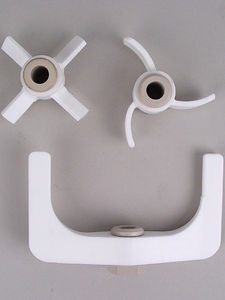

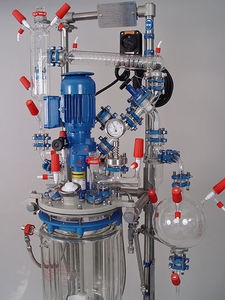

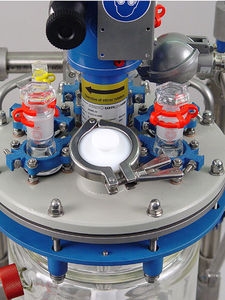

The Reactor's explosion proof design (ATEX) and inert materials allow safe processing of solvents and acids in a completely sealed reaction vessel. The compact standard reactor setup can easily be modified, interchangeable reaction vessels of 5, 10 and 15 liters including interchangeable stirrers are available. The reaction vessel is installed on a lifting / lowering device, for easy opening and cleaning. The distillation glass overhead is built with flexible ball-socket joints for multiple chemical reactions under full vacuum.
We produce complete solutions for chemical processing: Reactor systems including accessories like sampling devices, pH probes, rectification columns with structured packing, process monitoring and control as well as integration of auxiliary equipment such as temperature control units, nutsch filters / dryers, scrubbers or mixing vessels.
