搪玻璃反應釜： 250 – 10,000 L
工作壓力： -1.0 (FV)- + 0.5bar
工作溫度：-60 ° C (-90 ° C) - + 200 ° C
材料： 高硼矽玻璃 3.3 / 搪玻璃 / PTFE / PFA / 鉭
化工製程設備，包含搪玻璃反應器或混合罐及硼矽酸鹽玻璃組成的精餾裝置允許系統在全真空和低壓操作。由於這些材質具備高度耐腐蝕的特性，因此適合處理大量的各種腐蝕性化學品。設計上也能配合用途產品和特定的操作過程。加料罐和接收瓶亦可搭配於小的玻璃和生產用的搪玻璃釜。殼管式換熱器類型內的冷卻管可根據反應參數搭配硼矽玻璃、 搪玻璃、 碳化矽、 鉭或特殊金屬。這種反應器配置可用於蒸餾、 精餾、 回流蒸餾、 溶劑回收、 化學合成其他反應。
配置於大型化工搪玻璃的玻璃蒸_玻璃大都是根據反應須求或有限的空間量身訂製的。
Buchi 玻璃系統都由我們獨特、 靈活、 安全的 buchiflex 玻璃連接系統組成。DN15-DN 600 管件用於玻璃管道連接精餾塔、 換熱器、 給料機、 接收機和閥門。支撐框架經過空間優化建立在 316 不銹鋼管件。
我們在安全、 可靠的玻璃釜體設備製造的長期經驗將受益於我們釜體的設計及使用我們設備的客戶。
Glass lined steel reactor: 250 - 10'000 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60°C (-90°C) to +200°C
Material: Borosilicate glass 3.3 / glass lined steel / PTFE / PFA / Tantalum

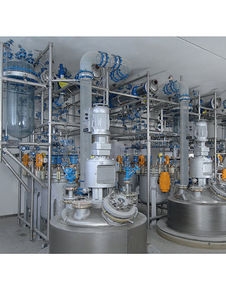

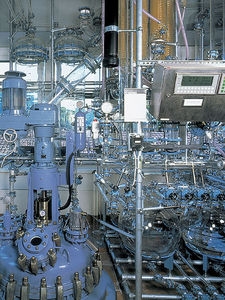

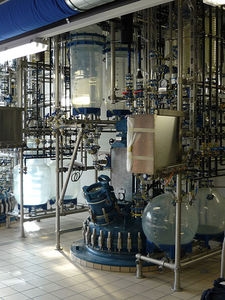

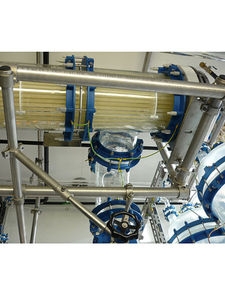

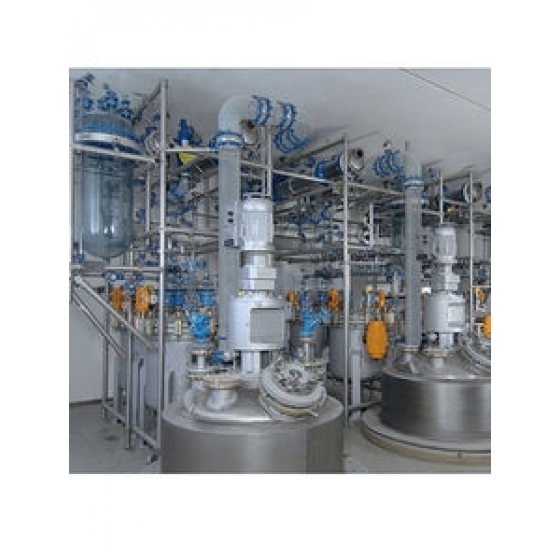

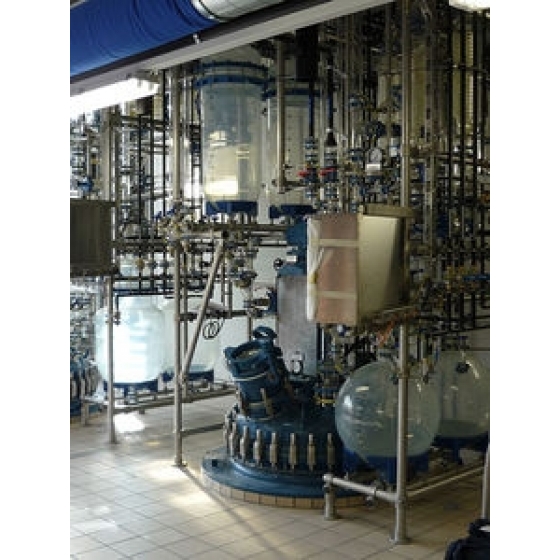

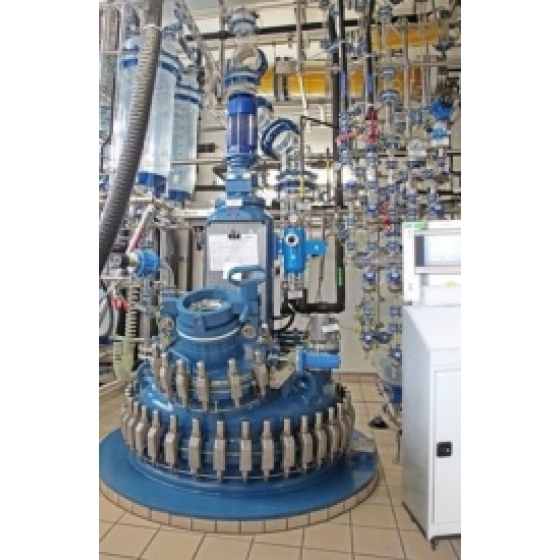

Chemical process equipment consisting of glass lined reactors or mixing tanks with distillation overhead in borosilicate glass can be operated at full vacuum and low pressure. A large variety of chemicals can be processed in such plants due to the highly corrosion resistant materials used. The design varies between multipurpose to product and process specific applications. Feeders and receivers are made in glass for smaller units and in glass lined steel for larger setups. Shell and tube type heat exchangers are built with inner tubes made of borosilicate glass, glass lined steel, silicon carbide, tantalum or in other metals depending on process parameters and other requirements . Such reactor configurations are used for distillation, reflux distillation, chemical synthesis, solvent recovery, rectification and other processes.

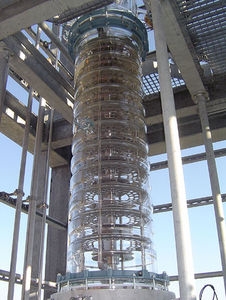

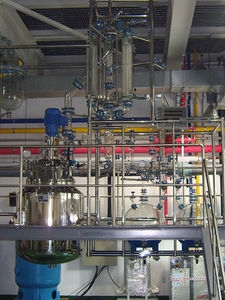

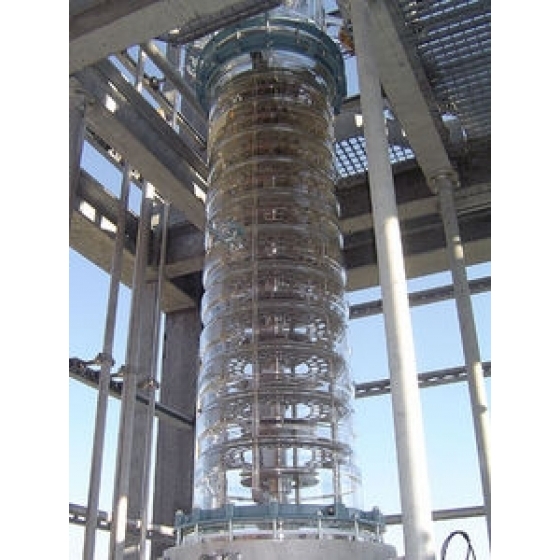

Distillation glass overheads for large chemical reactors in glass lined steel are always customized due to the process and available space. Our 3-D engineering enables the integration of large glass lined reactors of different suppliers in combination to our distillation glass overheads in a complete reaction system.

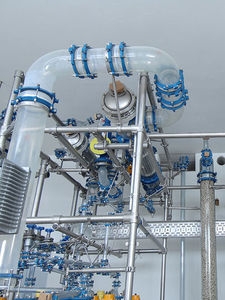

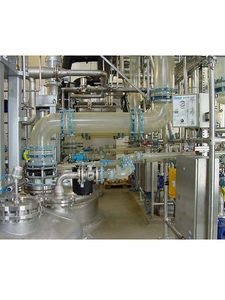

Buchi glass overheads are based on our unique, flexible and safe buchiflex glass joint system of DN15 - DN 600 components These connections are used for glass piping to connect distillation columns heat exchanger, feeder, receiver and valves.
Benefit from our long-term experience in the manufacturing of safe and reliable glass process equipment.
