乾式運行機械攪拌軸封包括攪拌器、 控制和高真空到高壓控制, 高粘度均配備磁性聯軸器作為靜態密封元件。這些化工壓力反應釜的攪拌馬達被應用到極端溫度、 壓力、 低和高扭矩混合、 高攪拌轉速。接液的零件都是耐腐蝕的金屬和陶瓷。

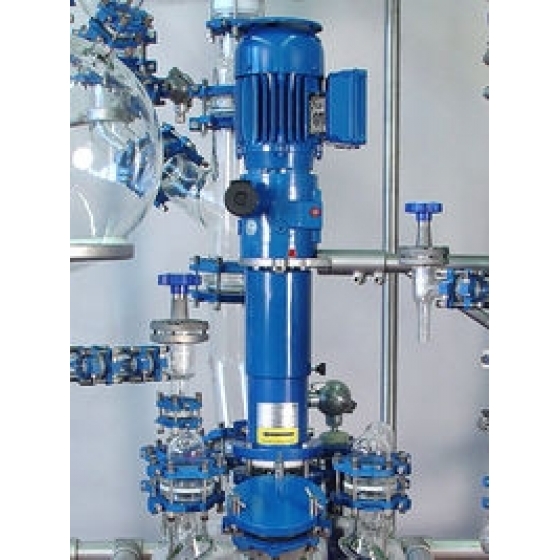

Stirrer drive with dry running mechanical sealing
The stirrer shaft seal is a key component of chemical reactors. It stands for leakage free operation of the rotating stirrer shaft. A mechanical seal shall be dry running, avoiding any contamination of the chemistry by a lubricant. Stirrers or agitators are important for mixing and heat-transfer so design and dimensions are crucial. Impellers are used for universal tasks
Mechanical sealing is designed for vacuum and low pressure and stirrer speed operations for larger glass lined steel stirrer shafts. These shafts are offered in corrosion resistant metal and ceramic for very high pressures and viscosities – see also our magnetic couplings below
Stirrer drives with dry running magnetic coupling

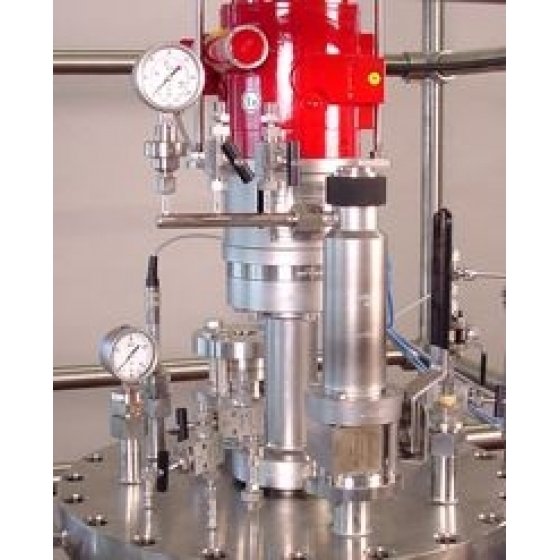

Dry running mechanical stirrer shaft sealing including stirrer, motor and control used for for high vacuum to high pressure and high viscosities are equipped with magnetic couplings as a static sealing element. These stirrer drives for chemical pressure reactors are designed for extreme operating conditions regarding temperature, pressure, low and high torque mixing, high stirrer rotation speed. The wetted parts are made in corrosion resistant metals and ceramic.
